THERMODYNAMIC STEAM TRAPS
|
|
|
 |

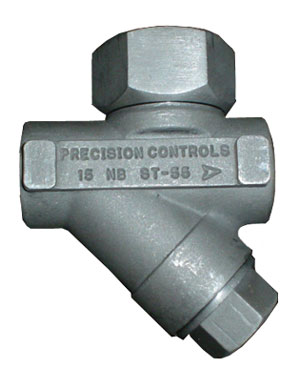

ST - 55 |
|
Sizes available |
: |
15 NB (1/2"), 20 NB (3/4") |
|
End
Connections |
: |
Screwed BSP / SW |
|
Options |
: |
IBR / Non-IBR |
|
Max Working Pressure |
: |
55.0 Kg/Cm2 |
|
Max Working Temperature |
: |
427 Deg. C |
Minimum differential pressure
for satisfactory operation 0.25 kG/Cm2.
Maximum operating back pressure at outlet should not exceed 80% of the
inlet pressure. Optional
Fittings:
- Blow down Valve
- Customized flanged connection
(specify size, face to face dimensions)
|
|
|
|
|
 |

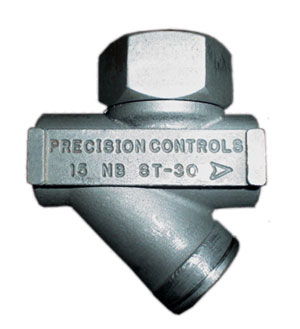

ST - 30 |
|
Sizes available |
: |
15 NB (1/2") |
|
End
Connections |
: |
Screwed BSP / SW |
|
Options |
: |
IBR / Non-IBR |
|
Max Working Pressure |
: |
30.0 Kg/Cm2 |
|
Max Working Temperature |
: |
427 Deg. C |
Minimum differential pressure
for satisfactory operation 0.25 kG/Cm2.
Maximum operating back pressure at outlet should not exceed 80% of the
inlet pressure. Optional
Fittings:
- Customized flanged connection
(specify size, face to face dimensions)
|
|
|
|
|
|
|
